NXG 250-070 C.A.F.S.

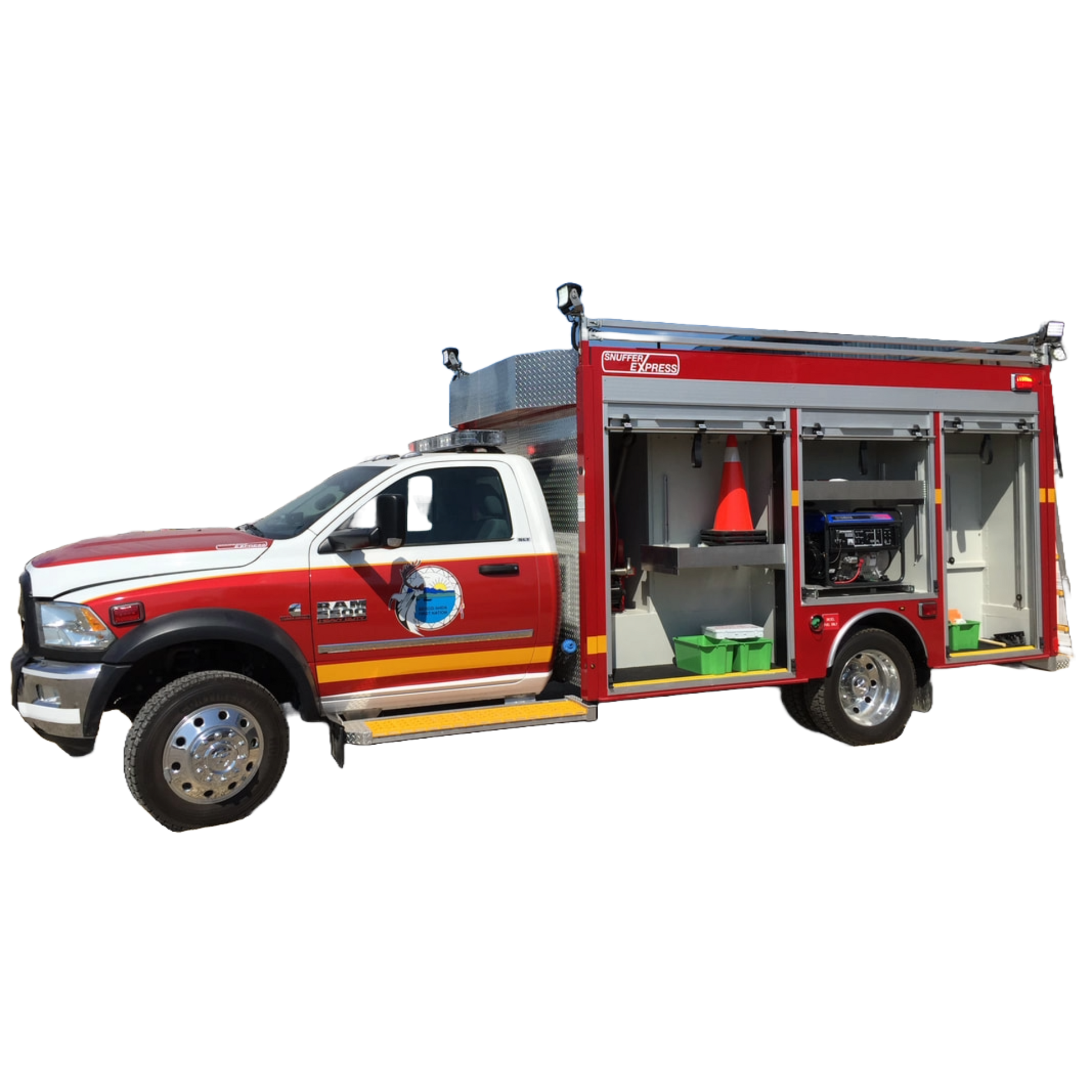

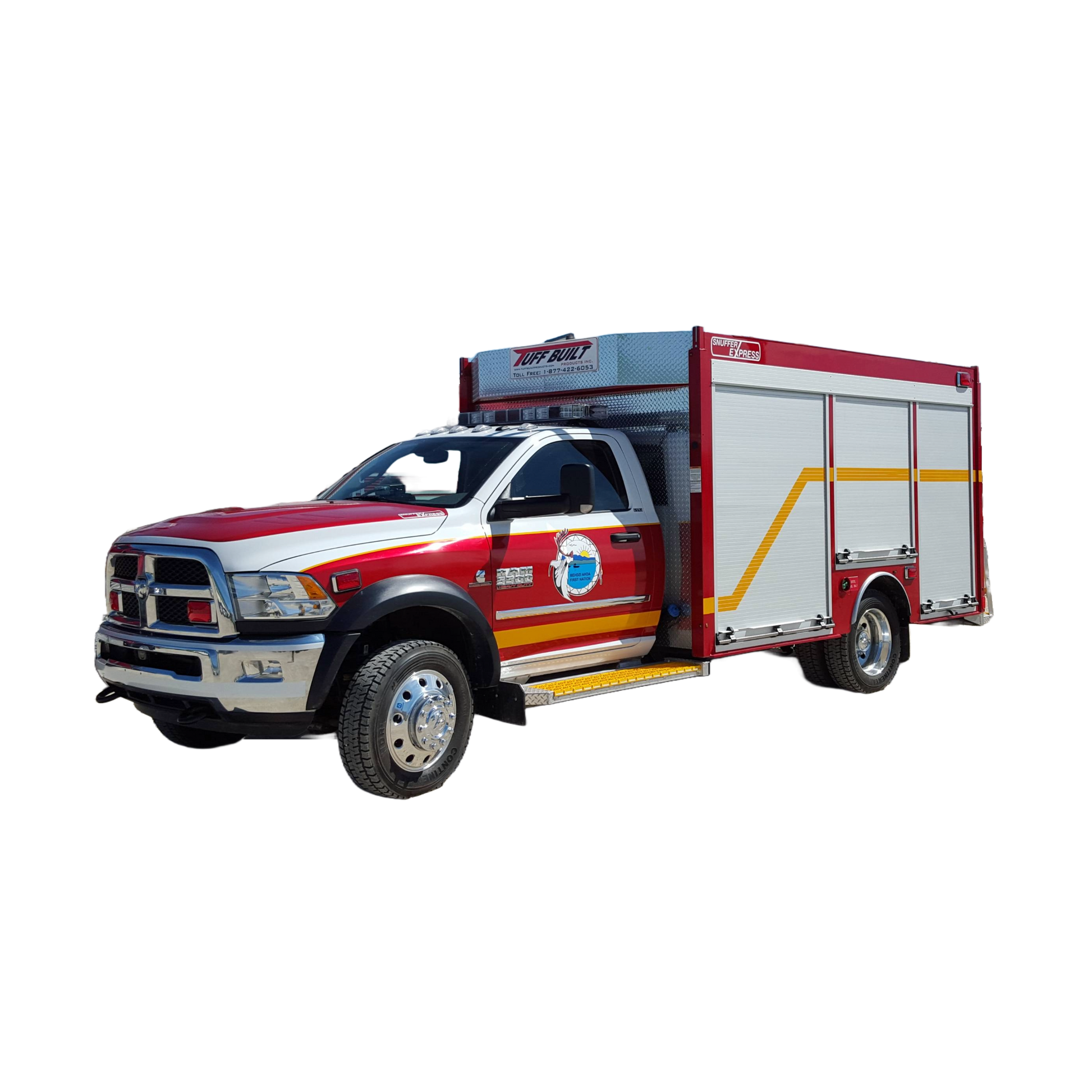

2014 Dodge 5500, Regular Cab, 84 CA, 4x4 6.7L Cummins High Output Turbo Diesel I-5

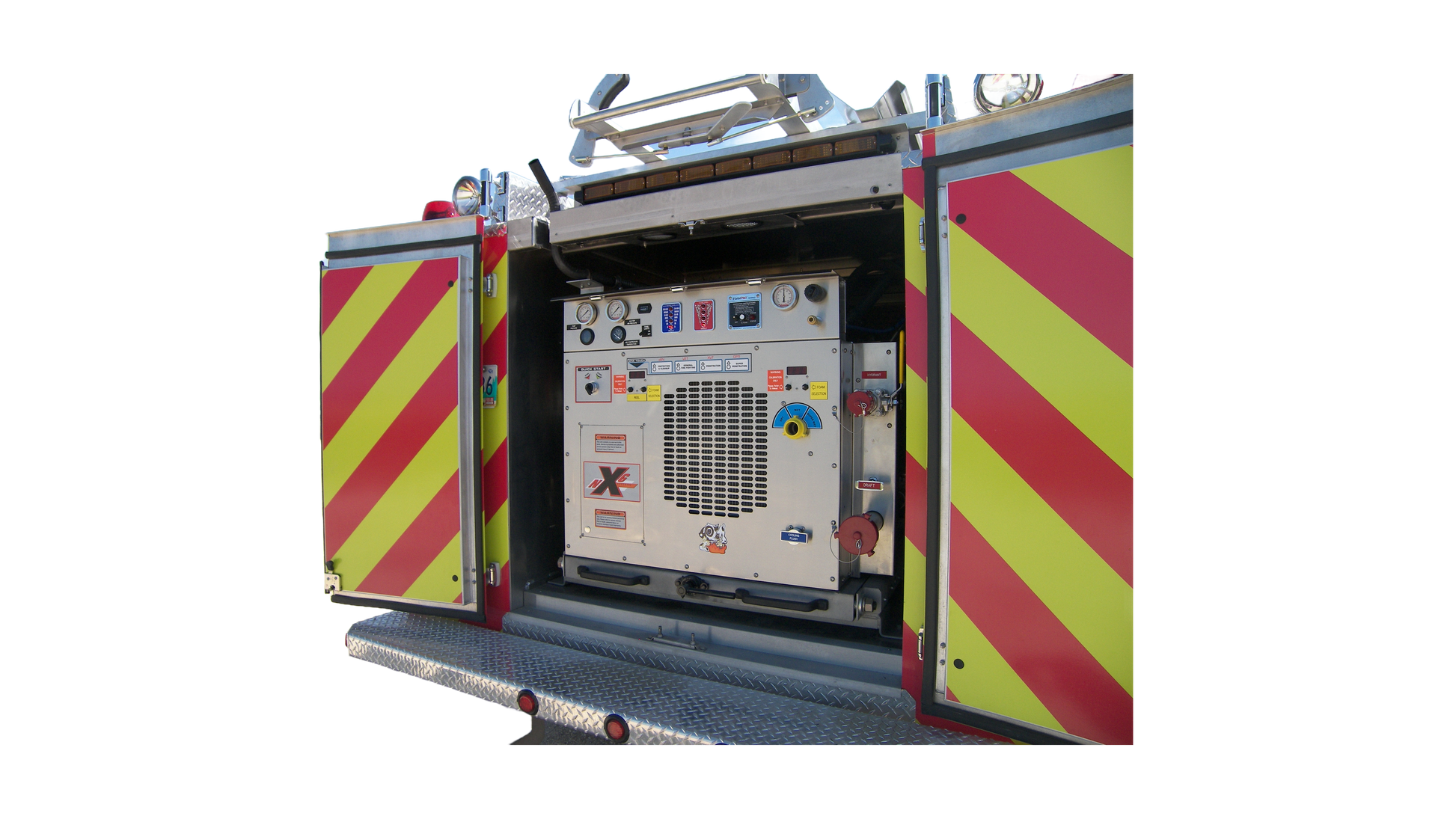

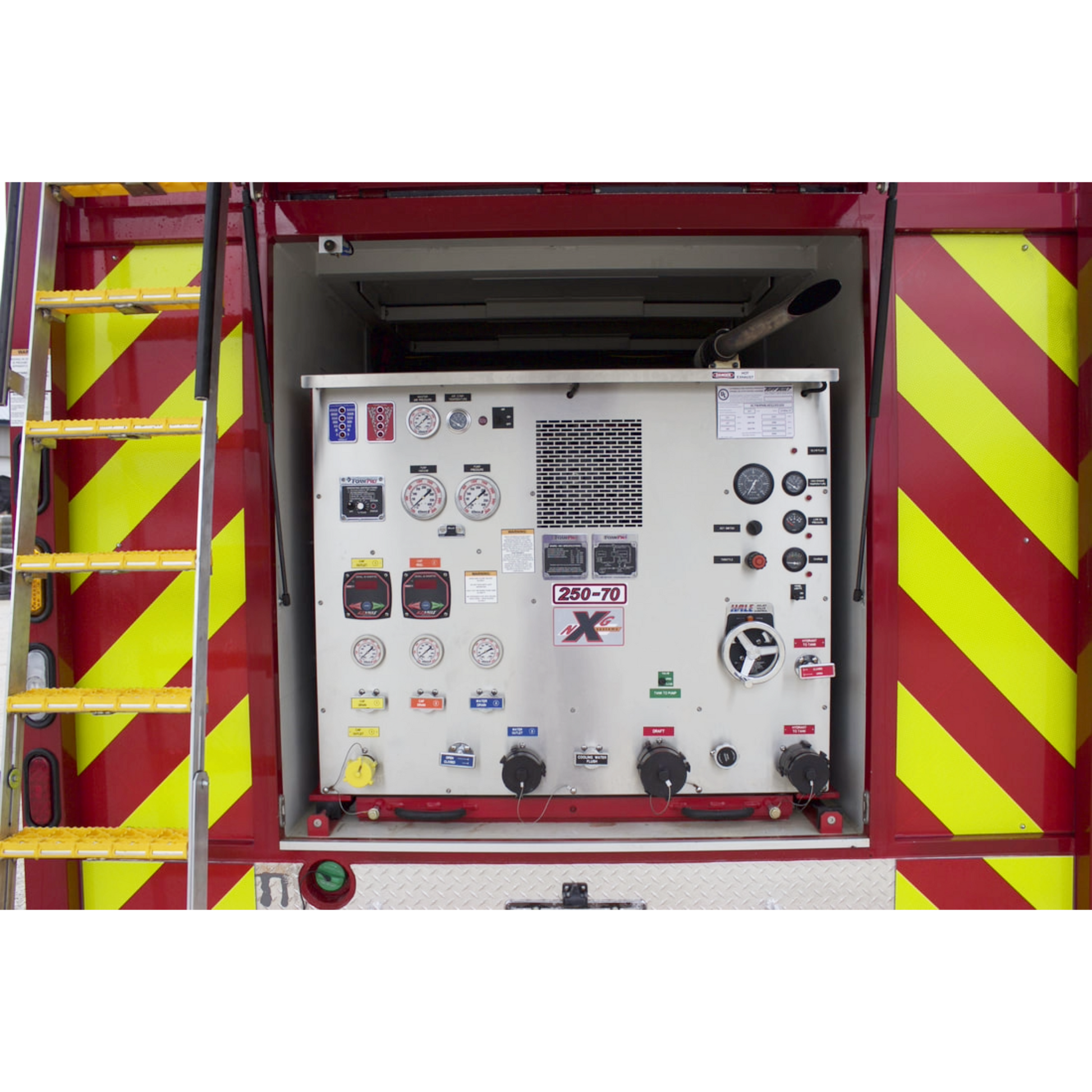

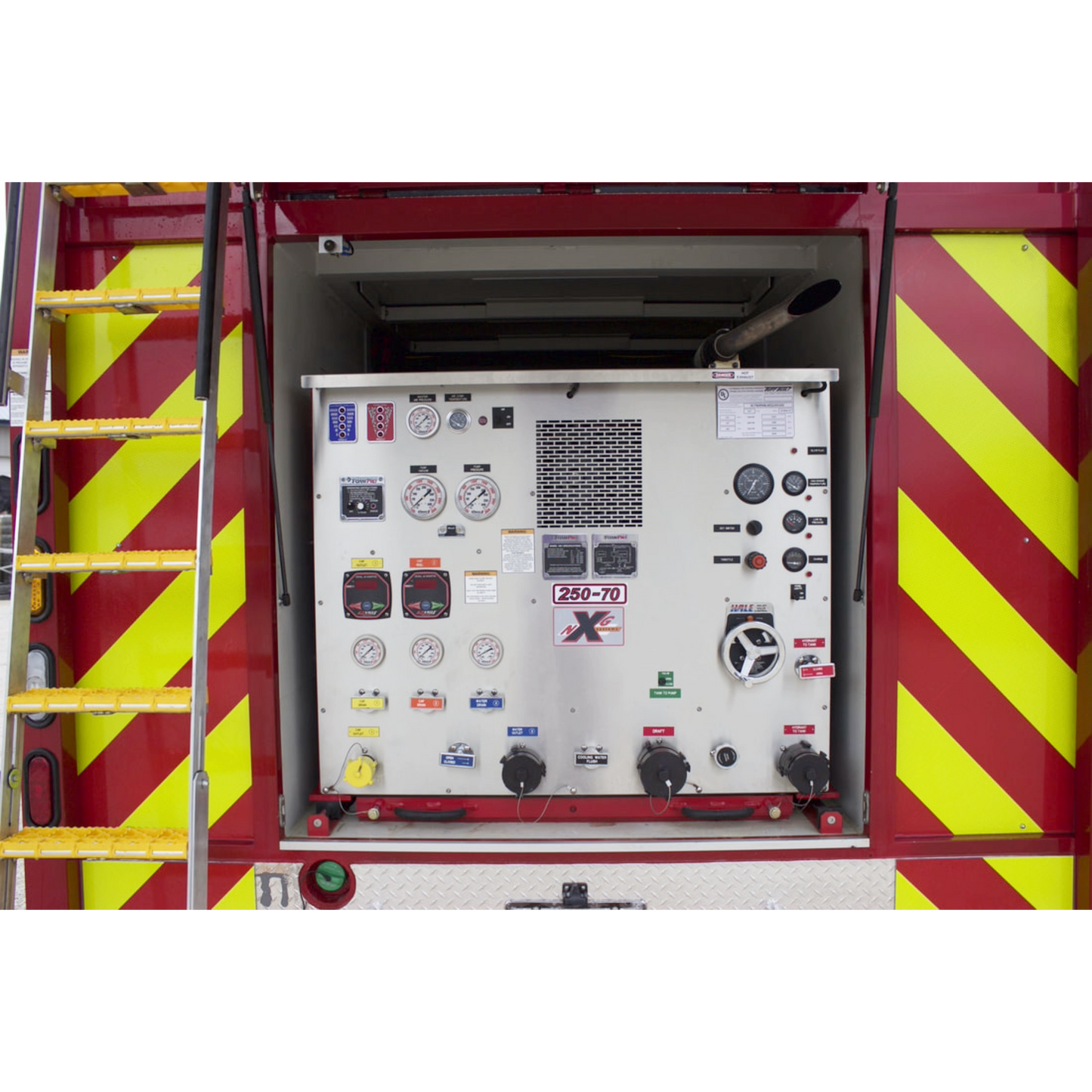

Model NXG 250-070 C.A.F.S.

- Rated Capacity: 250 USGPM @ 150 PSO
- CAFS Output: discharge- CAF Two 1-1/2" (38mm)
- CAFS Outlets:
     - Quantity: Two 1-11/2" (38mm) Outlet
     - Control Type: OneTouch Control
- Air Compressor: 70 SCFM
- Engine:
     - Make: Duetz Turbo Charged
     - Type: 4 Cylinder, Diesel
- Chemical Injector CAFS: Class A Only
     - Make: FoamPro 1600
- Water Pump: Tuff Built PMS 250

Walking Surfaces and Access Steps

- All Walking Areas feature NFPA Compliant aluminum checker plate or a non- slip thermo plastic thread

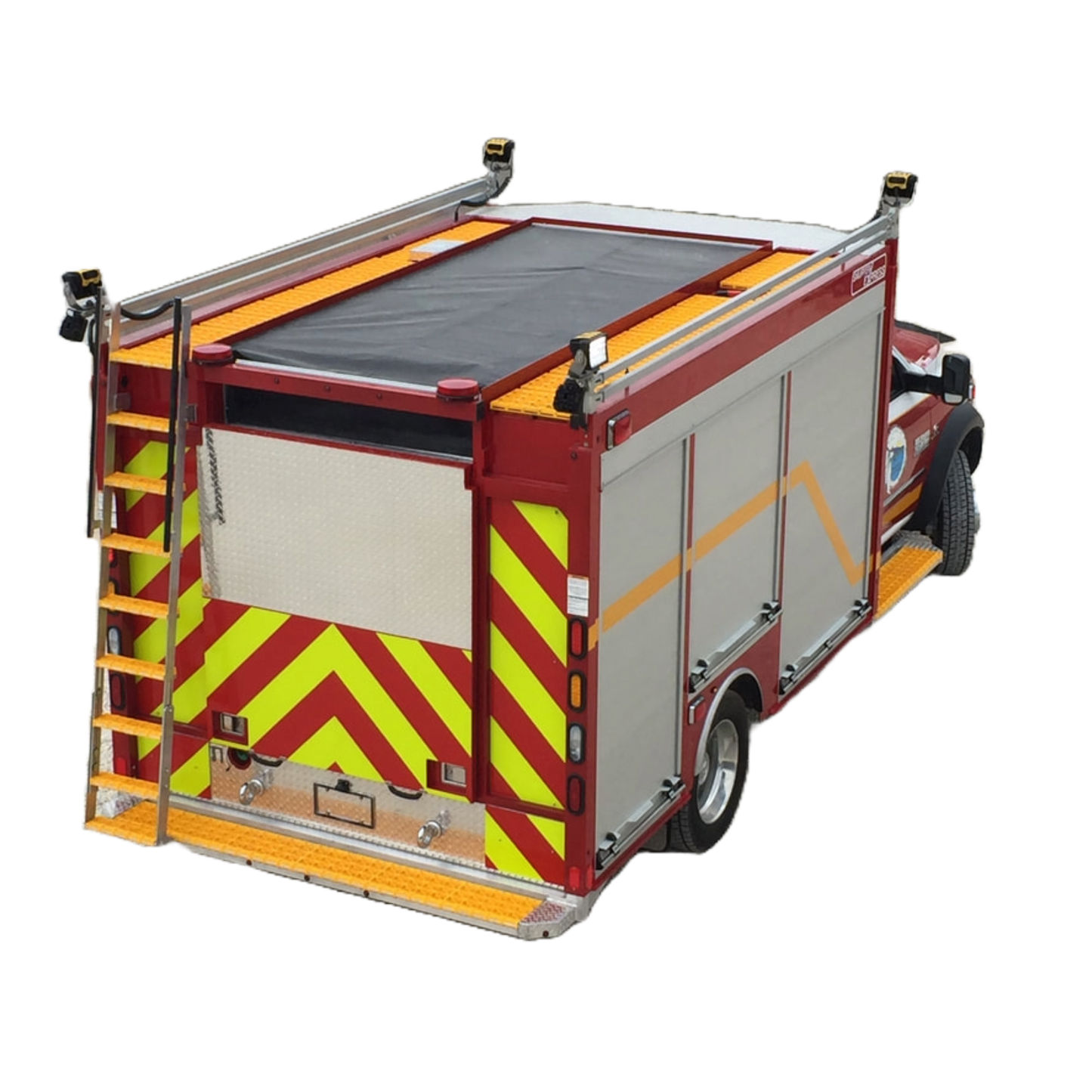

- A ladder located at the rear of the body allows safe access to the top

Aluminum Body, Undercoating and Compartment Doors

- The body is constructed out of high quality aluminum 5052 & 6061 for increased corrosion resistance

- An undercoating body seal offers protection from road debris and provides resistance to corrosion

- All side compartments are equipped with Amdor brand roll-up doors with interior lighting
